Wire Gauge Chart Explained: Choosing the Right Wire Size for Your Circuit

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

When working with electrical wiring, choosing the correct wire gauge is critical for both safety and performance. Using the wrong wire size can cause overheating, nuisance breaker trips, or even fire hazards.

That’s why electricians rely on wire gauge charts to match wire size with the correct breaker and electrical load.

In this guide, we’ll break down what wire gauge means, how amperage affects wire selection, and how to choose the correct wire size for common household circuits.

What Does Wire Gauge Mean?

Wire gauge refers to the thickness of the electrical conductor. In North America, wire sizes follow the American Wire Gauge (AWG) system.

The key thing to remember:

The smaller the AWG number, the thicker the wire.

For example:

• 14 AWG is thinner than 12 AWG

• 12 AWG is thinner than 10 AWG

• 8 AWG is thicker than all three

Thicker wire can carry more electrical current (amps) safely without overheating.

Why Wire Size Matters

Every electrical circuit is designed to carry a specific amount of current. The wire size must match the breaker size protecting that circuit.

If the wire is too small for the breaker:

• the wire may overheat

• insulation can melt

• fire hazards can occur

That’s why electrical codes specify maximum amperage ratings for different wire sizes.

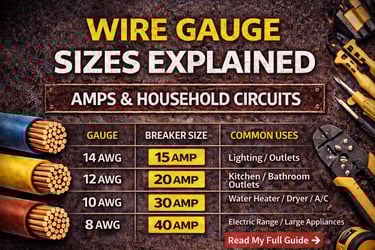

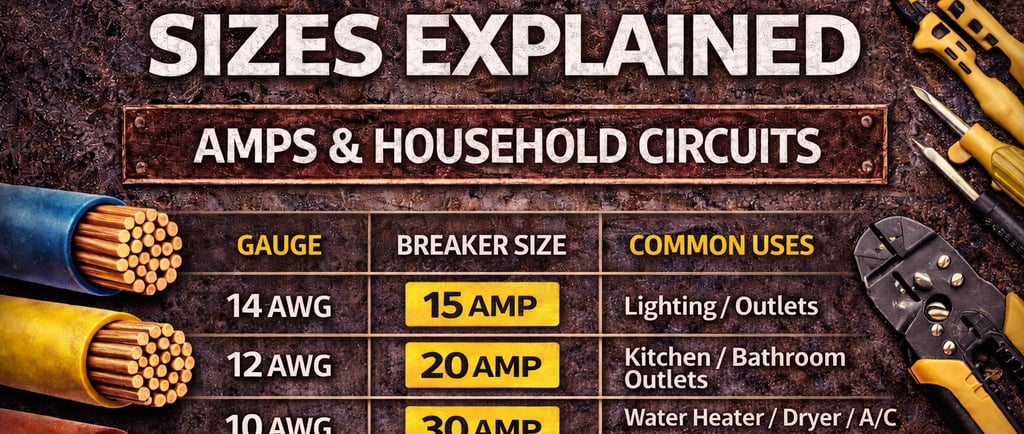

Common Residential Wire Sizes

Here are the most common wire gauges used in household electrical systems.

14 AWG Wire

Breaker Size: 15 amps

This is one of the most common wire sizes used in residential wiring.

Typical uses include:

• lighting circuits

• bedroom outlets

• general household outlets

Because it’s thinner than larger gauges, it must be protected by a 15-amp breaker.

12 AWG Wire

Breaker Size: 20 amps

12 gauge wire is commonly used in areas where appliances may draw more power.

Typical uses include:

• kitchen outlets

• bathroom outlets

• garage outlets

• laundry rooms

These circuits often use 20-amp breakers to support higher loads.

10 AWG Wire

Breaker Size: 30 amps

10 gauge wire is used for larger appliances that require more electrical current.

Common uses include:

• electric water heaters

• electric dryers

• larger air conditioning units

Because of the increased load, these circuits are typically protected by 30-amp breakers.

8 AWG Wire

Breaker Size: 40 amps

8 gauge wire is significantly thicker and capable of handling higher electrical loads.

Typical uses include:

• electric ranges

• large air conditioning systems

• subpanel feeds

These circuits usually operate on 40-amp breakers.

Always Follow Electrical Code

Wire sizing must follow local electrical codes and NEC guidelines.

Several factors can influence the correct wire size, including:

• wire length

• voltage drop

• temperature ratings

• conduit fill

• insulation type

When in doubt, always consult local code requirements or a licensed electrician.

Common Mistakes When Choosing Wire Size

Beginners often make a few common mistakes when selecting wire.

Using the wrong breaker

Never install a breaker larger than the wire rating.

Example:

Putting 14 AWG wire on a 20-amp breaker is unsafe.

Ignoring voltage drop

Long wire runs may require thicker wire to maintain proper voltage.

Mixing wire sizes on circuits

Electrical circuits should remain consistent and follow code requirements.

Tools That Make Electrical Work Easier

Whether you’re troubleshooting outlets or installing new circuits, having the right tools makes electrical work much easier and safer.

A reliable multimeter is essential for diagnosing wiring problems, checking voltage, and verifying that circuits are working correctly.

This multimeter makes it much easier to verify wiring, diagnose electrical problems, and safely work on household circuits.

Final Thoughts

Understanding wire gauge is an essential skill for anyone working with electrical systems. Choosing the correct wire size ensures circuits operate safely and efficiently while preventing overheating and electrical hazards.

By using a simple wire gauge chart, you can quickly determine the correct wire size for common household circuits and ensure your electrical projects follow safe practices.

Always double-check breaker sizes, follow local electrical codes, and use proper tools when working with electrical wiring.
