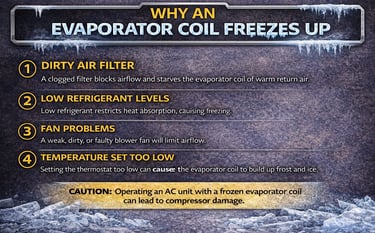

Why an Evaporator Coil Freezes Up

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

A frozen evaporator coil is one of the most common HVAC problems people run into, and it usually starts with a simple issue that gets ignored for too long.

At first, the system may still seem like it’s cooling a little. Then airflow gets weaker, temperatures start climbing, and before long the evaporator coil is covered in ice and the system can barely do its job.

The good news is that a frozen evaporator coil usually happens for a reason. If you understand the common causes, it gets much easier to spot the problem early and keep it from turning into a bigger repair.

What an Evaporator Coil Does

The evaporator coil is the part of the air conditioning system that absorbs heat from the indoor air.

Warm air from the house passes across the coil, and the refrigerant inside the coil absorbs that heat. As that happens, the air cools down and gets sent back through the ductwork.

For that process to work correctly, the evaporator coil needs:

• proper airflow

• the right refrigerant charge

• normal blower operation

• enough heat load across the coil

If one of those things is off, coil temperature can drop too low and moisture on the coil can begin freezing.

Once ice starts building, airflow gets even worse, and the problem snowballs fast.

Why Freezing Happens

A coil freezes when its temperature drops below freezing and moisture in the air turns to ice on the coil surface.

Instead of warm return air keeping the coil in the right operating range, something causes the coil to get too cold or not get enough airflow. That’s when frost starts forming.

Then frost becomes ice.

Then the system loses airflow and cooling performance.

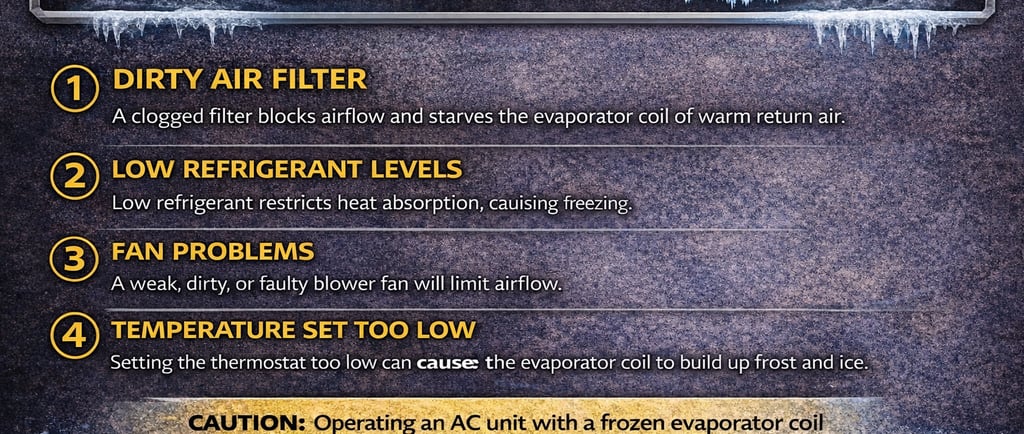

1. Dirty Air Filter

This is one of the most common causes.

When an air filter gets clogged, it restricts airflow across the evaporator coil. That means the coil is not getting enough warm return air moving over it.

Without enough airflow, the refrigerant inside the coil can stay too cold, and condensation on the coil can begin freezing.

A dirty filter can lead to:

• weak airflow from vents

• longer run times

• reduced cooling

• coil icing

• extra strain on the system

This is why checking the filter is always one of the first things worth doing when a system starts freezing up.

2. Low Refrigerant

Low refrigerant is another major cause of evaporator freeze-ups.

When refrigerant charge is low, system pressures drop. That can make evaporator temperature drop lower than it should, which increases the chance of ice forming on the coil.

Low refrigerant does not mean the system just “used it up.” If refrigerant is low, that usually points to a leak somewhere in the system.

Signs that low refrigerant may be part of the problem include:

• poor cooling performance

• longer run times

• hissing or bubbling sounds

• low suction pressure

• frost or ice on the evaporator or suction line

If low refrigerant is the issue, the real fix is finding and repairing the leak, then charging the system correctly.

3. Blower or Fan Problems

Airflow issues are not always caused by the filter.

A weak or failing blower motor, a dirty blower wheel, or a fan speed issue can also reduce airflow across the evaporator coil.

If the indoor blower is not moving enough air, the coil can get too cold and start icing over just like it would with a dirty filter.

Possible airflow-related causes include:

• weak blower motor

• bad blower capacitor

• dirty blower wheel

• blocked return air

• collapsed ductwork

• closed or restricted vents

Even if the refrigerant charge is perfect, poor airflow alone can still freeze a coil.

4. Thermostat Set Too Low for Too Long

Sometimes people set the thermostat extremely low and expect the system to cool faster. That is not really how AC works.

The system cools at the rate it can cool. Lowering the thermostat way down does not make it cool faster, but it can cause the unit to run for long periods without shutting off.

Under certain conditions, especially if airflow is already marginal, that extended run time can contribute to coil icing.

This is even more likely if the system already has another issue like:

• a dirty filter

• low refrigerant

• blower problems

• restricted airflow

So while thermostat setting alone is not always the main cause, it can definitely make an existing problem worse.

5. Dirty Evaporator Coil

The evaporator coil itself can also get dirty over time.

Dust, debris, and buildup on the coil reduce heat transfer and airflow. That makes it harder for the coil to absorb heat properly and can contribute to freezing.

A dirty coil can act a lot like a dirty air filter:

• reduced airflow

• lower efficiency

• colder-than-normal coil temperatures

• ice buildup

If a coil is heavily impacted with dirt, cleaning it may be necessary to restore normal performance.

6. Closed or Blocked Supply and Return Vents

Sometimes freezing issues happen because airflow is being restricted in the house itself.

Too many closed vents, blocked return grilles, or furniture restricting airflow can reduce the amount of warm air getting back to the system.

That lowers the heat load across the evaporator and can contribute to a freeze-up.

This is one of the more overlooked causes, especially in homes where people close vents in unused rooms thinking it will save energy.

What Happens If You Keep Running It Frozen

Running an AC system with a frozen evaporator coil is a bad idea.

Once the coil ices over, airflow drops hard and cooling performance usually gets worse, not better. The system may keep running but it cannot properly absorb and move heat.

If ignored long enough, it can lead to:

• no cooling

• water damage after thawing

• extra stress on the compressor

• higher energy use

• bigger repair bills

The safest move is usually to shut the system off and let the coil thaw before trying to diagnose the cause.

What to Check First

If you suspect a frozen evaporator coil, these are the first simple things to check:

Check the air filter

If it’s dirty, replace it.

Check airflow

Make sure supply vents and return grilles are open and not blocked.

Check for weak blower performance

If airflow seems weak even with a clean filter, the blower side may need attention.

Look for visible ice

Check the indoor coil area if accessible, and also the suction line near the air handler.

Don’t ignore low refrigerant signs

If freezing keeps happening, especially with decent airflow, refrigerant charge may need to be checked by a qualified tech.

How to Prevent a Frozen Coil

A few basic maintenance habits can go a long way:

• change the air filter regularly

• keep return vents clear

• don’t block supply vents

• have the evaporator and blower checked if airflow seems weak

• address refrigerant leaks instead of just topping off charge

• don’t run the system with obvious icing

A lot of frozen coil problems start small and could have been avoided with early attention.

Final Thoughts

An evaporator coil usually freezes up for one of a few common reasons: poor airflow, low refrigerant, blower issues, dirty components, or long run times under the wrong conditions.

The key thing to remember is that a frozen coil is a symptom, not the root problem by itself.

If you catch it early, the fix may be something simple like a dirty filter or blocked airflow. If you ignore it, it can turn into a much more expensive repair.
