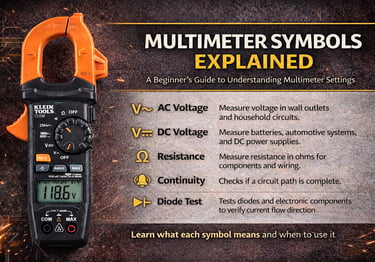

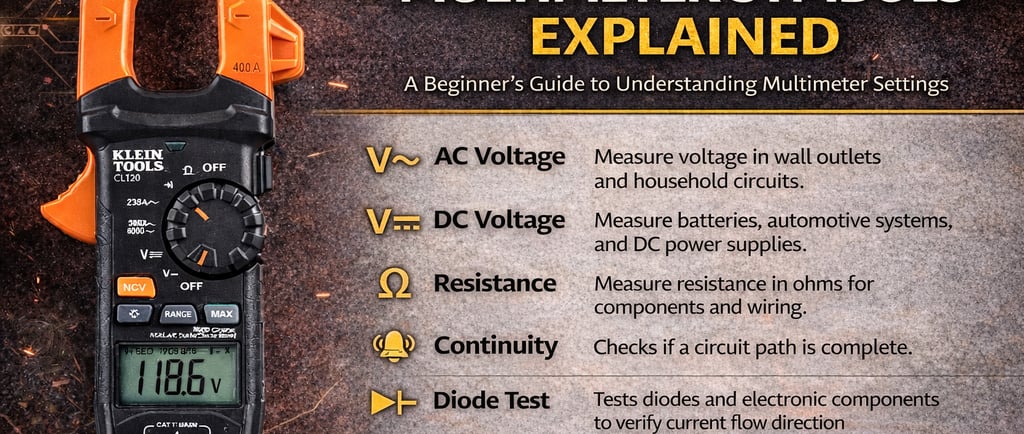

Multimeter Symbols Explained: A Beginner’s Guide To Understanding Multimeter Settings

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

If you’re new to using a multimeter, the different symbols on the dial can look confusing at first. AC voltage, DC voltage, resistance, continuity, and diode testing are all essential functions, but knowing when and how to use them is what makes a multimeter such a powerful diagnostic tool.

Whether you’re troubleshooting electrical outlets, checking batteries, or diagnosing wiring issues, understanding what each symbol means will help you use your multimeter safely and effectively.

In this guide, we’ll break down the most common multimeter symbols and explain what each one is used for.

AC Voltage (V~)

The AC voltage setting, shown as V~, is used to measure alternating current voltage. This is the type of electricity used in household electrical systems.

Common uses for AC voltage testing include:

• Checking voltage at wall outlets

• Testing extension cords

• Diagnosing household wiring problems

• Verifying breaker output

In North America, standard outlets typically measure around 120 volts, though readings between about 110V and 125V are normal.

When using this setting, place the black probe in the COM port and the red probe in the V port, then carefully touch the probes to the outlet or circuit you want to test.

DC Voltage (V⎓)

The DC voltage setting, shown as V⎓, measures direct current voltage. DC power is commonly found in batteries, automotive electrical systems, and many electronic devices.

You would use this setting when:

• Testing batteries

• Checking automotive wiring

• Diagnosing power supplies

• Measuring solar panel output

For example, a standard car battery should read around 12.6 volts when fully charged.

DC voltage testing is one of the most common uses for a multimeter when working on vehicles or electronics.

Resistance (Ω)

The resistance setting, shown as Ω, measures resistance in ohms.

Resistance testing is helpful for checking components and verifying that electrical connections are functioning properly.

Common uses include:

• Checking resistors

• Testing heating elements

• Diagnosing damaged wiring

• Verifying circuit components

If a component has failed internally, resistance readings may show infinite resistance (OL) or an abnormal value.

Resistance testing should always be performed with the circuit powered off to avoid damaging the multimeter.

Continuity (🔔)

The continuity setting is one of the most useful functions on a multimeter for quick troubleshooting.

Instead of displaying a resistance value, the multimeter will emit a beep when a complete circuit path exists between the probes.

This makes it easy to quickly test things like:

• Broken wires

• Blown fuses

• Switches

• Electrical connections

If the circuit path is complete, the meter will beep. If there is a break in the circuit, it will remain silent.

This feature is especially useful when diagnosing wiring problems in appliances, vehicles, or household circuits.

Diode Test (▶|)

The diode test setting is used to check diodes and other electronic components.

Diodes allow current to flow in one direction only, and the diode test function helps verify whether the component is working properly.

This setting is commonly used when:

• Testing electronic circuit boards

• Checking rectifiers

• Diagnosing power supplies

• Troubleshooting electronic devices

The multimeter will measure the forward voltage drop across the diode, which helps determine whether the component is functioning correctly.

Tips for Using a Multimeter Safely

While multimeters are extremely useful tools, it’s important to use them correctly.

A few simple tips include:

• Always select the correct measurement setting before testing

• Use the correct probe ports for voltage or resistance testing

• Never test resistance on a powered circuit

• Start with higher ranges if your meter is not auto-ranging

Following these basic guidelines will help prevent damage to your meter and ensure accurate readings.

Final Thoughts

Learning how to read multimeter symbols is one of the first steps toward becoming comfortable with electrical troubleshooting. Once you understand what each setting does, a multimeter becomes an incredibly powerful tool for diagnosing problems quickly and safely.

Whether you’re checking an outlet, testing a battery, or troubleshooting wiring, knowing when to use AC voltage, DC voltage, resistance, continuity, and diode testing will make your electrical work much easier.
