How to Tell If a Capacitor Is Bad: Signs, Testing Tips, and What to Check

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

A bad capacitor can cause all kinds of frustrating electrical and HVAC problems. Motors may struggle to start, equipment may hum without running, breakers may trip, or a unit may run weak and inefficiently. The tricky part is that a bad capacitor does not always look obviously damaged from the outside. Sometimes it is swollen or leaking, but other times it looks perfectly normal and still tests bad.

Knowing how to identify a failing capacitor can save you a lot of time when diagnosing electrical equipment, especially on things like air conditioners, condensers, blower motors, compressors, shop tools, and other motor-driven systems. If you know what signs to look for and how to test properly, you can narrow down the issue much faster.

What a Capacitor Does

A capacitor stores and releases electrical energy to help a motor start or run properly. In many HVAC and motor applications, the capacitor gives the motor the boost it needs to get moving and helps maintain proper operation once it is running.

When a capacitor starts going bad, the motor may not receive the correct electrical support. That can lead to hard starting, overheating, weak performance, humming noises, or complete failure to start.

Common Signs a Capacitor Is Bad

There are a few classic warning signs that often point to a failing capacitor.

1. Bulging Top or Swollen Case

One of the easiest visual signs is a bulged or swollen top. Many capacitors are supposed to have a flat top, so if the top is puffed up or domed, that is a strong clue the capacitor has failed or is on its way out.

2. Leaking Oil or Residue

Some capacitors will leak oily residue when they fail. If you see fluid, staining, or crusty buildup around the case or terminals, it is a sign that something is wrong.

3. Burnt or Chemical Smell

A bad capacitor may give off a burnt smell or strong chemical odor. If you notice that around the electrical compartment, shut power off and inspect carefully.

4. Motor Hums but Does Not Start

A failing capacitor can keep a motor from starting correctly. You may hear a hum, but the motor does not spin up the way it should. This is common on condensers, fan motors, and other single-phase motor applications.

5. Weak or Intermittent Operation

Sometimes the unit starts sometimes and struggles other times. A weak capacitor can cause inconsistent operation before it fully fails.

6. Capacitance Reading Is Too Low

One of the most reliable ways to confirm a bad capacitor is by testing it and comparing the measured capacitance to the rated value printed on the capacitor.

Can a Capacitor Look Good and Still Be Bad?

Yes, absolutely. That is what catches a lot of people off guard. A capacitor can look clean, flat, and normal from the outside and still be out of spec. That is why visual inspection is only the first step. If you really want to know whether the capacitor is healthy, you need to test it.

That is where having a decent meter matters. A tool like the Klein Tools CL120 digital clamp meter is useful to keep around because it gives you core troubleshooting functions for checking voltage, continuity, and general electrical conditions during diagnosis. Even when you are not measuring capacitance directly with a dedicated meter, a solid multimeter or clamp meter helps you rule out other problems and confirm whether power is present where it should be.

How to Check a Capacitor Safely

Before doing anything, safety comes first.

Capacitors can hold a charge even after power is removed. That means you should never assume they are safe to touch just because the unit is off. Always shut power off fully, verify power is actually disconnected, and discharge the capacitor properly before testing or handling it.

Basic safety steps:

• Turn off power to the equipment

• Verify power is off with a meter

• Discharge the capacitor safely

• Remove the wires carefully and note their positions

• Avoid touching terminals unnecessarily

If you are not comfortable working around electrical components, it is better to stop and call a qualified technician.

Visual Inspection Checklist

Start with the easy stuff. Look for:

• Bulging top

• Swollen case

• Leaking oil

• Burn marks

• Corroded terminals

• Broken or loose connections

If you see any of those, the capacitor is highly suspect.

Testing With a Meter

Once the capacitor has been safely discharged and removed from the circuit if needed, testing can help confirm whether it is good or bad.

Check Voltage First

Before touching anything, use your meter to confirm power is actually off. This is a critical first step. A meter like the Klein Tools CL120 digital clamp meter is handy here because it allows you to quickly verify voltage and continuity during troubleshooting, which is essential before moving further into the diagnosis.

Check Continuity or Resistance Behavior

Depending on your meter and the style of testing you are doing, you may see signs that the capacitor is open or shorted. A fully failed capacitor may show no useful charging behavior at all, or it may read like a direct short.

Check Capacitance Value

The best method is measuring the actual capacitance and comparing it to the value printed on the capacitor label. If the reading is significantly lower than the rated value, the capacitor is bad or weak enough to justify replacement.

For example, if a capacitor is rated for a specific microfarad value and your reading comes in well below that range, that is a strong sign of failure.

Symptoms of a Bad Capacitor in Real Equipment

The exact symptoms vary depending on the equipment, but here are a few common examples.

Air Conditioner or Condenser Unit

• Outdoor fan will not start

• Compressor struggles or hums

• Unit trips breaker

• Cooling is weak or inconsistent

Blower Motor

• Motor hums but does not turn

• Fan starts slowly

• System airflow is weak

Shop Equipment or Small Motors

• Hard starting

• Random shutdowns

• Loss of power

• Excess heat buildup

What Else Can Mimic a Bad Capacitor?

Capacitors are common failure points, but they are not the only cause of starting or running problems. Similar symptoms can also come from:

• Bad contactors

• Loose wiring

• Burnt terminals

• Failed motors

• Low or high supply voltage

• Control board issues

• Tripped overloads

That is why a methodical diagnosis matters. A good troubleshooting tool helps you avoid just guessing and throwing parts at the problem. The Klein Tools CL120 digital clamp meter can help with that process by giving you a practical way to check for power, continuity, and electrical issues before assuming the capacitor is the only problem.

When a Capacitor Should Be Replaced

A capacitor should be replaced if:

• It is bulging or leaking

• It has obvious burn damage

• It reads significantly out of spec

• The equipment symptoms point strongly to capacitor failure

• The terminals are damaged or badly corroded

Capacitors are one of those components where trying to stretch a failing part too long usually is not worth it. A weak capacitor can cause hard starting and extra strain on the motor, which can lead to more expensive problems later.

Why a Good Meter Is Worth Having

Even if you are not an HVAC tech or electrician, having a reliable meter makes diagnosis much easier for homeowners, DIYers, and service-minded people. Instead of guessing whether power is present or whether a circuit is dead, you can actually test and verify.

That is why a meter like the Klein Tools CL120 digital clamp meter is a smart tool to have in the toolbox. It is useful for more than just this one job. You can use it for general electrical troubleshooting, checking continuity, verifying voltage, and helping narrow down common equipment problems around the house, garage, or shop.

Final Thoughts

A bad capacitor can show itself through bulging, leaking, burnt smells, weak motor starting, humming, and low capacitance readings. Sometimes the signs are obvious, and sometimes the capacitor looks perfectly fine until you test it. That is why good troubleshooting matters.

If you suspect a capacitor problem, start with a safe visual inspection, confirm power is off, and test methodically instead of guessing. And if you want a practical troubleshooting tool for checking voltage, continuity, and general electrical issues, the Klein Tools CL120 digital clamp meter is worth a look.

Recommended Tool for Troubleshooting This Issue

If you are trying to diagnose capacitor problems safely and avoid guessing, having a solid meter on hand makes the job much easier. You can check out the Klein Tools CL120 digital clamp meter on Amazon to see current pricing, customer reviews, and whether it looks like a good fit for your toolbox.

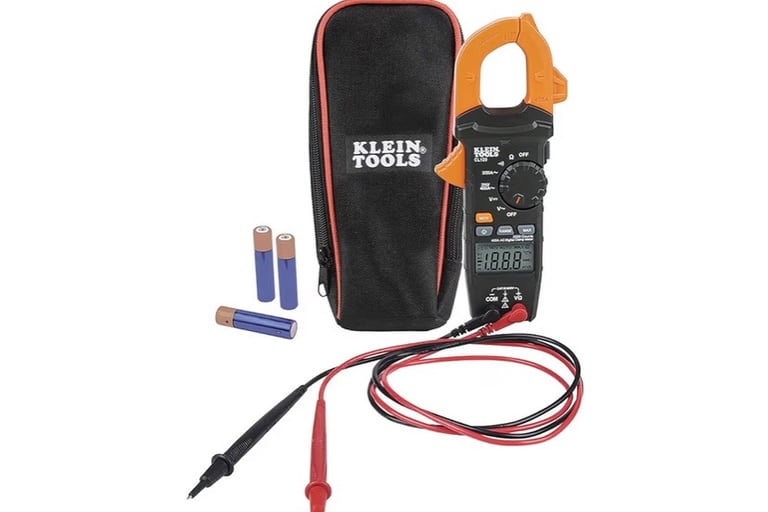

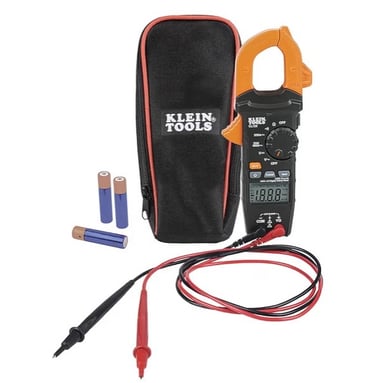

Klein Tools CL120 digital clamp meter
