How to Reduce Burn-Through on Thin Material When Welding

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

Burn-through is one of the most frustrating problems when welding thin material. One second the puddle looks decent, and the next second you have a glowing hole in the panel. It happens fast, especially when you are working on sheet metal, auto body patches, exhaust pieces, light brackets, or other thin steel.

The good news is that burn-through is usually not caused by a lack of effort. It is usually caused by too much heat, poor setup, or trying to weld thin material the same way you would weld thicker steel. Once you understand how heat behaves on thin metal, it becomes much easier to make cleaner welds without blowing holes through the workpiece.

Why Burn-Through Happens

Burn-through happens when too much heat builds up in one spot and the metal cannot support the molten weld puddle anymore. Thin metal simply does not have much mass to absorb and spread that heat. That means mistakes show up quickly.

A few common causes include:

• Amperage or voltage set too high

• Wire feed speed not matched to the settings

• Holding the arc in one spot too long

• Poor fit-up with large gaps

• Using wire that is too large for thin material

• Welding long continuous beads instead of short tacks

• Dirty metal that makes the arc unstable

If you are dealing with repeated burn-through, the issue is almost always related to heat input and control.

Start With Lower Heat Settings

One of the easiest ways to reduce burn-through is to turn the machine down. Many beginners assume more power will make welding easier, but on thin material it usually does the opposite.

Start with the lowest setting that still gives you acceptable penetration. You can always bump it up slightly if the weld is sitting too cold on top, but if you start too hot, thin metal can disappear in a hurry.

This is where an entry-level welder with adjustable settings can really help. A machine like the YESWELDER 135A MIG welder gives you better control over output, which is a big advantage when you are learning how to weld thinner material without overheating it. Instead of fighting an overly aggressive machine, you can fine-tune the setup and make smaller adjustments as needed.

Use Thinner Wire

Wire size matters more than a lot of people think. Thinner wire generally works better on thinner material because it allows for better control and a softer welding feel.

For many thin steel applications, a smaller diameter wire helps reduce the chance of dumping too much filler and heat into the joint too quickly. If your wire is too large, it can make the weld feel hotter and less forgiving.

Pairing the right wire size with a welder that gives you decent control can make a big difference. That is one reason a beginner-friendly machine like the YESWELDER 135A MIG welder is attractive for hobby welders and DIYers. It is the kind of setup that makes it easier to practice on lighter gauge material without immediately turning the job into a patch panel nightmare.

Keep a Steady Travel Speed

Burn-through often happens when the torch stays in one spot too long. Even if your machine settings are close, lingering too long will overheat the metal.

A steady travel speed helps spread the heat and keeps the puddle moving before it has time to collapse the panel. If you move too slowly, the metal gets hotter and hotter until it opens up. If you move too fast, you may lose fusion or end up with a weak weld that sits on top.

This takes practice, but the goal is smooth movement and short, controlled welds rather than long, slow beads.

Use Tack Welds Instead of Long Beads

On thin material, long continuous welds are usually a bad idea unless the setup and technique are extremely dialed in. A much better approach is to use a series of small tack welds and let the metal cool between them.

This is especially helpful for:

• Sheet metal patches

• Auto body work

• Thin tubing

• Light fabrication

• Small repair panels

You can place a tack, move to another area, then come back after the first spot cools. Over time, you connect the tacks until the seam is complete. This reduces heat buildup and helps prevent warping too.

Improve the Fit-Up

Large gaps are one of the biggest reasons thin metal burns away. If the two pieces do not fit closely together, the arc has to bridge that open space, and that often leads to excessive heat concentration and a blown-out edge.

Take the time to trim, align, and clamp the pieces properly before welding. Better fit-up means less filler is needed, less heat is required, and the weld is easier to control.

Even a good welder will struggle if the material fit-up is poor. Clean prep and tight joints make everything easier.

Use a Backer Behind the Weld

A backer can help absorb and spread heat while supporting the puddle. Copper is commonly used for this because weld metal does not fuse to it easily, and it helps pull heat away from the thin material.

When possible, place a backer behind the seam or hole area. This can be especially useful when filling small burn-through spots or welding very thin sheet metal. It gives the puddle something to rest against and can make the repair a lot more manageable.

Keep the Metal Clean

Thin material does not tolerate contamination very well. Rust, paint, oil, mill scale, or dirt can make the arc inconsistent and force you to spend more time trying to stabilize the puddle, which adds heat and increases the risk of burn-through.

Before welding, clean the area down to bright metal whenever possible. Good prep gives you a more predictable arc and better control over the puddle.

Watch Your Gun Angle and Stickout

Torch angle and stickout also affect how heat is delivered. If your stickout is too long, the arc can get unstable. If your angle is awkward, it can make puddle control harder and encourage overheating.

Try to keep your gun position consistent and your stickout reasonable for the process and setup you are using. Small technique issues often matter a lot more on thin material than they do on thicker steel.

Practice on Scrap First

Before jumping straight into your real project, practice on scrap material that matches the same thickness. This lets you dial in your settings and test your travel speed without ruining the actual workpiece.

A few test passes can save a ton of frustration. You can see whether the weld is too cold, too hot, or just right before you commit to the real repair.

This is another situation where a simple adjustable machine helps. The YESWELDER 135A MIG welderis the kind of entry-level welding rig that works well for people learning on thinner material because you can practice, adjust, and get more comfortable without needing a huge shop machine.

What to Do If You Already Burned Through

If you do blow a hole through the metal, do not panic. It happens to everybody. The key is to stop, let the area cool, and avoid making the hole worse.

A few tips:

• Do not keep pouring heat into the hole

• Let the metal cool down first

• Use short trigger pulls or tiny tacks around the edge

• Work gradually from the outside inward

• Use a backer if possible

Trying to fill a hole with one long hot pass usually just turns a small problem into a bigger one.

Best Mindset for Welding Thin Material

Thin metal rewards patience more than aggression. The cleaner your prep, the better your fit-up, and the more controlled your welds are, the fewer problems you will have.

Instead of trying to force the weld, think in terms of heat management:

• Lower settings

• Short welds

• Controlled movement

• Cooling time between passes

• Good prep and fit-up

That approach will give you much better results than trying to muscle through with extra heat.

Recommended Welder for Beginners

If you are learning to weld thin material and want a machine that gives you flexibility for lighter fabrication and repair work, an entry-level setup can be a smart move. The YESWELDER 135A MIG welder is worth a look because it offers multiple welding functions in a compact package and gives you the adjustability needed to work on thinner metal with better control.

For DIY projects, small repairs, and beginner practice, having a welder like this can make the learning curve a lot less painful.

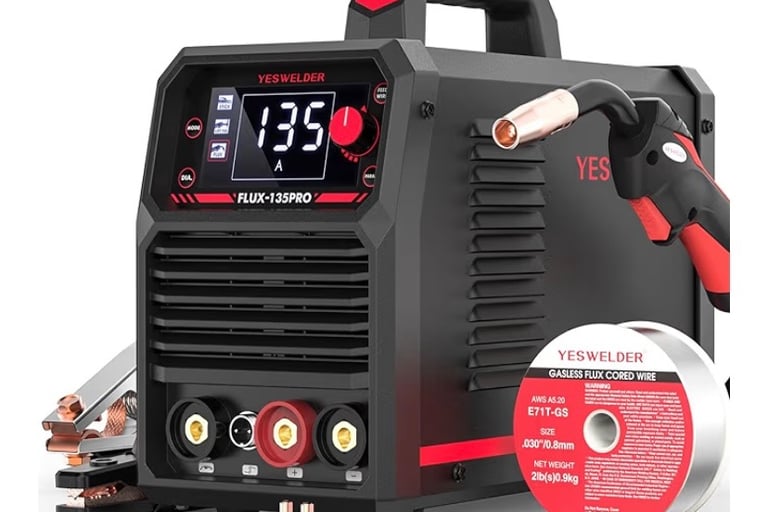

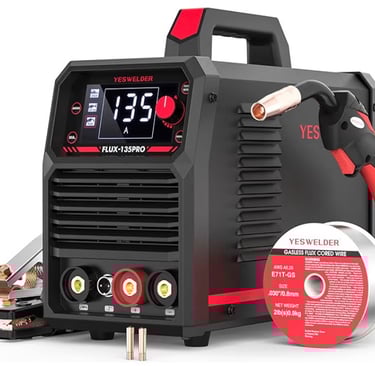

YESWELDER 135A MIG welder

Final Thoughts

Reducing burn-through on thin material comes down to controlling heat and improving technique. Lower your settings, use the right wire, keep a steady travel speed, avoid long continuous welds, improve fit-up, and practice on scrap before touching the real job. Those simple changes can dramatically improve your results.

If you are just getting started or want a more manageable machine for thin metal projects, the YESWELDER 135A MIG welder is a solid entry-level option to check out.
