How a Basic Refrigeration System Works:

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

If you’re new to HVAC or refrigeration, the refrigeration cycle can seem confusing at first. Once you break it down into a few main parts, though, it gets a lot easier to understand.

At its core, a basic refrigeration system does one simple job: it moves heat from one place to another.

That’s really what air conditioning and refrigeration are all about. The system is not “creating cold” the way a lot of people think. Instead, it is absorbing heat indoors and rejecting that heat somewhere else.

In this guide, I’ll break down the four main components of a basic refrigeration system and explain what each one does.

The Four Main Parts of a Basic Refrigeration System

A simple refrigeration system has four primary components:

• Compressor

• Condenser

• Expansion device

• Evaporator

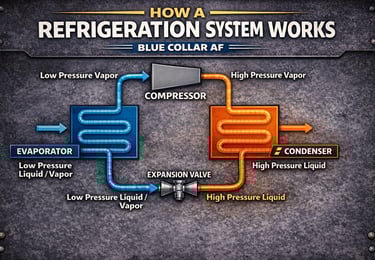

These four parts work together in a loop called the refrigeration cycle.

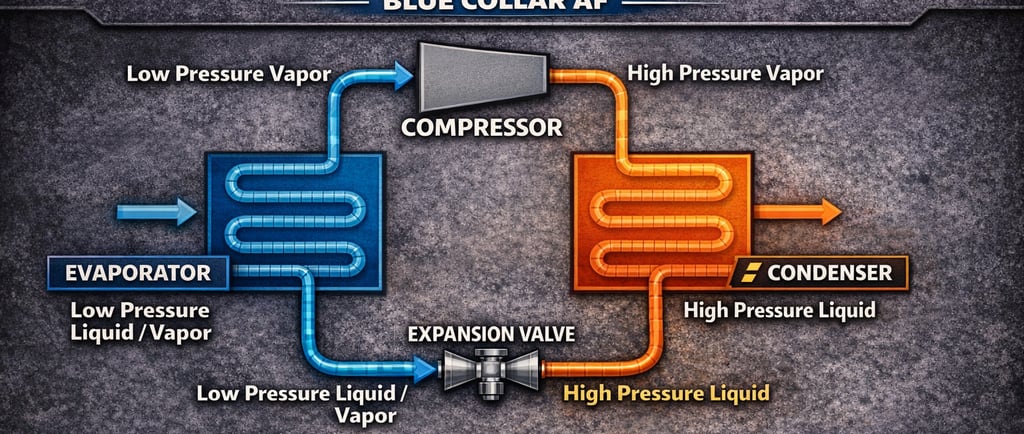

The basic flow looks like this:

Compressor → Condenser → Expansion Valve → Evaporator → back to Compressor

What the Refrigerant Does

Refrigerant is the fluid moving through the system. As it circulates, it changes:

• pressure

• temperature

• state (liquid or vapor)

Those changes are what allow the system to move heat.

A good way to think about it is this:

• On one side of the system, the refrigerant is absorbing heat

• On the other side, it is rejecting heat

That heat movement is what makes refrigeration work.

1. Compressor

The compressor is often called the heart of the system.

Its job is to take in low-pressure vapor from the evaporator and compress it into a high-pressure, high-temperature vapor.

When the refrigerant vapor is compressed:

• pressure goes up

• temperature goes up

• the refrigerant is pushed through the system

So the compressor is doing two major things:

1. moving refrigerant

2. raising its pressure and temperature

Without the compressor, the refrigerant would not circulate the way it needs to.

2. Condenser

After leaving the compressor, the refrigerant enters the condenser as a hot, high-pressure vapor.

The condenser’s job is to get rid of that heat.

As air moves across the condenser coil, heat is removed from the refrigerant. As it loses heat, the refrigerant changes from a vapor into a high-pressure liquid.

That’s why the condenser is the heat-rejection side of the system.

In simple terms:

• the refrigerant comes in hot

• it gives off heat

• it leaves as a liquid

If it helps, think of the condenser as the part of the system where unwanted heat gets dumped.

3. Expansion Valve or Metering Device

Once the refrigerant leaves the condenser as a high-pressure liquid, it goes through the expansion valve or another type of metering device.

This part of the system creates a pressure drop.

When the refrigerant passes through the expansion device:

• pressure drops

• temperature drops

• flow is restricted and controlled

That pressure drop is a huge part of the refrigeration cycle. It prepares the refrigerant to enter the evaporator as a much colder, lower-pressure mixture.

This is basically the dividing line between the high side and the low side of the system.

4. Evaporator

After the expansion device, the refrigerant enters the evaporator as a low-pressure, low-temperature liquid/vapor mix.

The evaporator is the heat-absorption side of the system.

As warm indoor air moves across the evaporator coil, the refrigerant absorbs that heat. As it absorbs heat, the refrigerant boils off and turns into a low-pressure vapor.

That vapor then returns to the compressor, and the cycle starts all over again.

In simple terms:

• warm air passes over the evaporator

• refrigerant absorbs the heat

• refrigerant leaves as vapor

• heat has now been removed from the air

That is how the system cools air or keeps a refrigerated space cold.

High Side vs Low Side

One of the most important beginner concepts to understand is the difference between the high sideand the low side.

High side

This includes the refrigerant leaving the compressor and moving through the condenser up to the expansion device.

On the high side, the refrigerant is generally:

• higher pressure

• warmer

• either hot vapor or high-pressure liquid

Low side

This includes the refrigerant leaving the expansion device, going through the evaporator, and returning to the compressor.

On the low side, the refrigerant is generally:

• lower pressure

• colder

• a low-pressure liquid/vapor mix or low-pressure vapor

Understanding high side and low side pressure is one of the key building blocks in refrigeration troubleshooting.

A Simple Way to Remember the Cycle

A beginner-friendly way to remember it is:

• Compressor = raises pressure

• Condenser = rejects heat

• Expansion valve = drops pressure

• Evaporator = absorbs heat

That basic sequence will help you make sense of a lot of HVAC and refrigeration problems later on.

Why Pressure Matters So Much

Pressure and temperature are closely tied together in a refrigeration system.

When pressure changes, the refrigerant’s boiling point changes too. That’s what allows the refrigerant to:

• boil and absorb heat in the evaporator

• condense and reject heat in the condenser

That is one of the biggest reasons gauges and pressure readings matter so much in HVAC work. They help you see what is happening inside the sealed system.

What This Looks Like in Real Life

In an air conditioner:

• the evaporator is usually inside where it absorbs heat from indoor air

• the condenser is usually outside where it rejects heat

• the compressor pumps refrigerant through the loop

• the metering device controls refrigerant flow into the evaporator

In a refrigerator or cooler, the same exact idea applies. The layout may look different, but the refrigeration cycle still works the same way.

Common Beginner Mistake

One of the biggest mistakes beginners make is thinking the system “makes cold.”

It really doesn’t.

A refrigeration system works by moving heat:

• taking heat from the evaporator side

• carrying it through the refrigerant

• dumping it at the condenser side

That’s the simplest and most important concept to remember.

Final Thoughts

A basic refrigeration system may look complicated at first, but the cycle gets much easier to understand when you break it into four parts:

• compressor

• condenser

• expansion valve

• evaporator

Once you understand what each part does and how the refrigerant changes pressure, temperature, and state as it moves through the system, the whole cycle starts making a lot more sense.

If you’re learning HVAC or refrigeration, this is one of the most important fundamentals to get down early.
