Modern vehicles rely on a long list of sensors to keep the engine running properly. These sensors constantly send information to the ECU, which is the computer that helps manage fuel delivery, ignition timing, airflow, emissions, and overall performance.

When one of these sensors starts giving bad information, the engine may still run, but it often will not run the way it should. That is when you start seeing symptoms like rough idle, hesitation, poor fuel economy, reduced power, hard starting, or a check engine light.

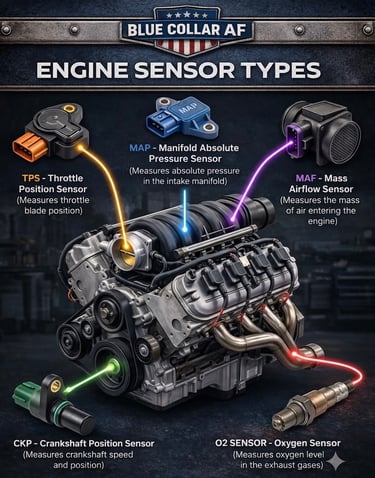

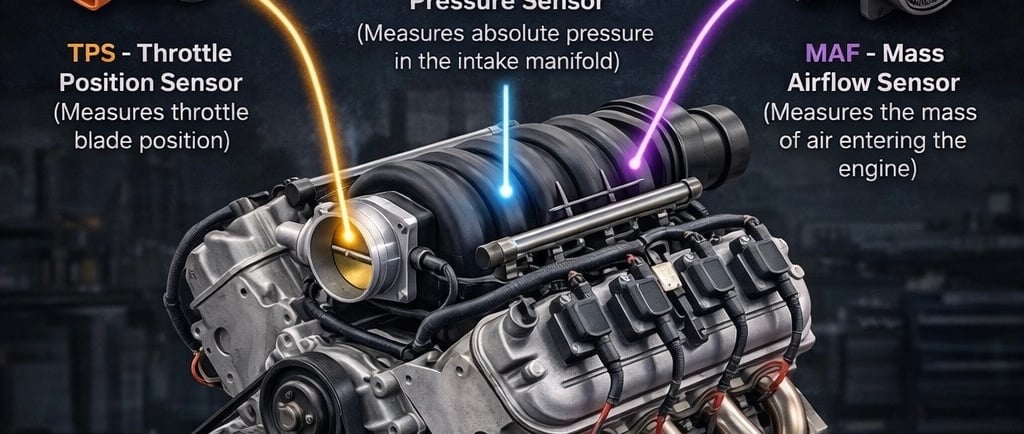

In this guide, I’m breaking down some of the most common engine sensors and what they actually do.

Why Engine Sensors Matter

Engine sensors are basically the eyes and ears of the engine management system. They monitor what is happening inside the engine and intake system so the computer can make adjustments in real time.

Without accurate sensor data, the ECU is forced to guess or rely on backup values. That can lead to:

• poor engine performance

• bad fuel mileage

• rough running

• failed emissions tests

• hard starts

• warning lights

That is why sensor problems can cause such a wide range of symptoms.

1. TPS Sensor

The TPS, or Throttle Position Sensor, tells the ECU how far the throttle blade is open.

What it does

As you press the gas pedal, the throttle opens. The TPS lets the computer know how much throttle input is being applied so it can adjust fuel and engine response.

Why it matters

The ECU uses throttle position data to help with:

• acceleration

• throttle response

• idle control

• transmission shifting on some vehicles

Common symptoms of a bad TPS

• hesitation when accelerating

• jerky throttle response

• rough idle

• surging

• poor shifting behavior

• check engine light

If the TPS signal is erratic, the engine computer may think you are opening or closing the throttle when you really are not.

2. MAP Sensor

The MAP, or Manifold Absolute Pressure Sensor, measures pressure inside the intake manifold.

What it does

The MAP sensor helps the ECU understand engine load by measuring intake manifold pressure. That information is used to calculate how much fuel the engine needs.

Why it matters

The engine computer uses MAP data for:

• fuel delivery

• ignition timing

• engine load calculation

• overall performance adjustments

Common symptoms of a bad MAP sensor

• rough idle

• poor fuel economy

• black smoke from exhaust

• hesitation

• hard starting

• loss of power

• check engine light

A bad MAP sensor can make the engine run too rich or too lean depending on the false data it sends.

3. MAF Sensor

The MAF, or Mass Air Flow Sensor, measures the amount of air entering the engine.

What it does

This sensor sits in the intake system and tells the ECU how much air is flowing into the engine. The computer then uses that information to calculate the correct amount of fuel to inject.

Why it matters

The right air-fuel mixture is critical for:

• engine performance

• fuel economy

• emissions

• smooth idle

• acceleration

Common symptoms of a bad MAF sensor

• rough idle

• hesitation

• poor throttle response

• stalling

• reduced power

• poor fuel mileage

• check engine light

A dirty or failing MAF sensor is one of the more common causes of driveability problems on modern engines.

4. CKP Sensor

The CKP, or Crankshaft Position Sensor, monitors crankshaft position and speed.

What it does

This sensor tells the ECU where the crankshaft is in its rotation and how fast it is spinning. That information is critical for ignition timing and fuel injector timing.

Why it matters

The engine computer depends on crankshaft position data to know when to:

• fire the spark plugs

• pulse the injectors

• keep the engine synchronized

Common symptoms of a bad CKP sensor

• crank no start

• random stalling

• misfires

• hard starting

• tachometer issues

• check engine light

In many vehicles, if the crankshaft position sensor fails completely, the engine may not start at all.

5. O2 Sensor

The O2 sensor, or oxygen sensor, monitors oxygen content in the exhaust.

What it does

The oxygen sensor helps the ECU see whether the engine is running rich or lean by measuring oxygen levels in the exhaust gases.

Why it matters

This is a major part of fuel control and emissions management. The ECU uses O2 sensor data to fine-tune the air-fuel ratio.

Common symptoms of a bad O2 sensor

• poor fuel economy

• rough running

• failed emissions test

• check engine light

• sluggish performance

• rich or lean condition codes

O2 sensors are especially important once the engine reaches operating temperature and enters closed-loop operation.

How These Sensors Work Together

These sensors do different jobs, but they all work together.

For example:

• the MAF or MAP helps measure incoming air and engine load

• the TPS helps track throttle input

• the CKP helps track engine speed and position

• the O2 sensor helps the ECU fine-tune the air-fuel mixture after combustion

If even one of these sensors starts reporting incorrect data, it can throw off the entire system.

That is one reason sensor problems can be tricky. A symptom like rough idle or hesitation does not always point to just one sensor immediately.

Common Signs a Sensor May Be Failing

If one or more engine sensors are starting to fail, you might notice:

• check engine light

• rough idle

• hesitation

• stalling

• loss of power

• poor fuel mileage

• hard starting

• inconsistent throttle response

• failed emissions testing

These symptoms can overlap with other issues too, so proper diagnosis matters.

Why a Code Reader Helps

When a sensor starts acting up, one of the best first steps is scanning the vehicle for trouble codes.

A code reader can help point you in the right direction by showing codes related to:

• throttle position

• mass airflow

• manifold pressure

• oxygen sensor performance

• crankshaft position issues

That does not always mean the sensor itself is bad, but it gives you a much better starting point than guessing.

Quick Reminder About Diagnosis

Just because a code mentions a sensor does not always mean the sensor is the only problem.

For example:

• a dirty MAF sensor may cause issues, but so can an intake leak

• an O2 sensor code may be caused by fuel mixture problems rather than the sensor itself

• a MAP sensor code may be linked to vacuum leaks

• a crank sensor code may involve wiring or connection issues

That is why it is important to look at the full picture instead of replacing parts blindly.

Final Thoughts

Engine sensors play a huge role in how modern vehicles run. The TPS, MAP, MAF, CKP, and O2 sensor all give the ECU the information it needs to control fuel, airflow, ignition timing, and engine performance.

When these sensors work correctly, the engine runs smoother, cleaner, and more efficiently. When one starts failing, the symptoms can show up fast.

Understanding what these sensors do gives you a better foundation for diagnosing common engine problems and knowing where to start when the check engine light comes on.

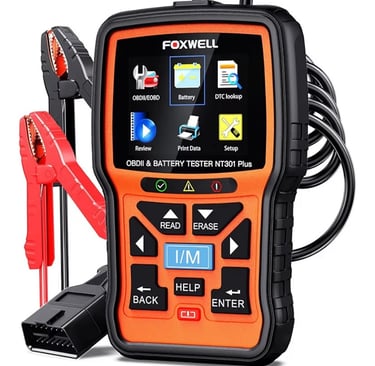

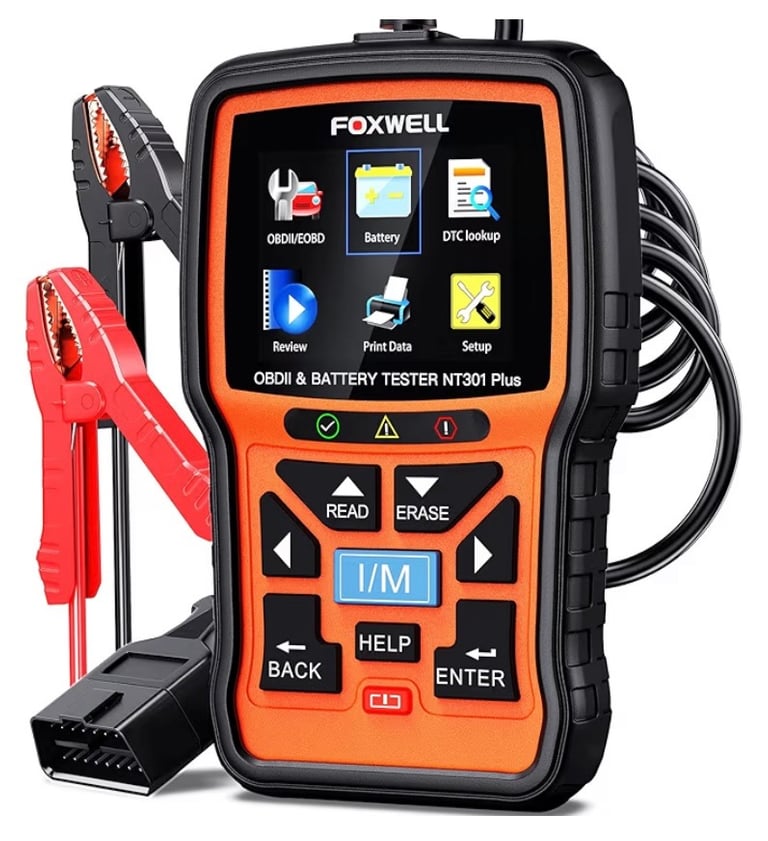

Recommended Tool

If you want an easy way to start diagnosing sensor-related problems, check out our recommended OBD2 scanner and battery tester on Amazon. It’s a handy tool for reading codes, checking vehicle data, and getting a better idea of what your engine is trying to tell you.

FOXWELL NT301 OBD2 Scanner
