Engine Overheating? 5 Common Causes to Check First

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

An overheating engine is one of those problems you do not want to ignore. Let it go too long and a simple cooling system issue can turn into a warped head, blown head gasket, or major engine damage. The good news is that a lot of overheating problems start with a few common causes you can check before throwing random parts at it.

If your temperature gauge is climbing higher than normal, steam is coming from under the hood, or your coolant keeps disappearing, here are the first things I’d look at.

1. Low Coolant Level

This is one of the most common reasons an engine starts running hot. If the system does not have enough coolant, it cannot carry heat away from the engine the way it should.

A low coolant level can happen from:

• a small external leak

• a bad radiator cap

• a leaking hose

• a water pump leak

• trapped air in the system after previous work

Before you do anything else, let the engine cool down completely and check the coolant level in the radiator or reservoir. Never remove a radiator cap on a hot engine.

One tool that makes this whole process cleaner and easier is a spill-proof radiator coolant filling funnel kit. A kit like the EPAuto Spill Proof Radiator Coolant Filling Funnel Kit is helpful because it lets you top off coolant and burp air from the system without making a mess. Air pockets can cause overheating too, so this is one of those tools that is actually useful beyond just adding coolant.

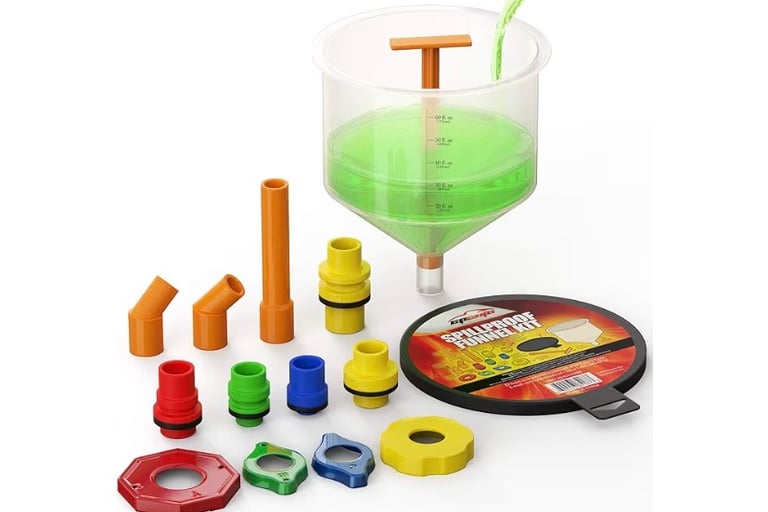

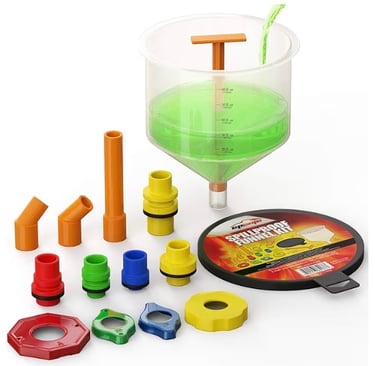

Radiator Coolant Filling Funnel Kit

2. Stuck Thermostat

A stuck thermostat can stop coolant from flowing properly through the engine and radiator. When that happens, the engine may heat up fast because the hot coolant is not circulating the way it should.

Common signs of a stuck thermostat include:

• engine overheats quickly after startup

• upper radiator hose stays cooler than expected

• heater performance acts strange

• temperature gauge rises suddenly

A quick way to get a better idea of what is happening is by checking temperatures across the cooling system with an infrared thermometer. The Klein Tools IR1 Infrared Thermometer is a good fit for this because it lets you compare temperatures at the thermostat housing, radiator hoses, and radiator surface without touching hot components. It will not diagnose every problem by itself, but it can help you see whether coolant flow seems normal or if one part of the system is staying much colder or hotter than it should.

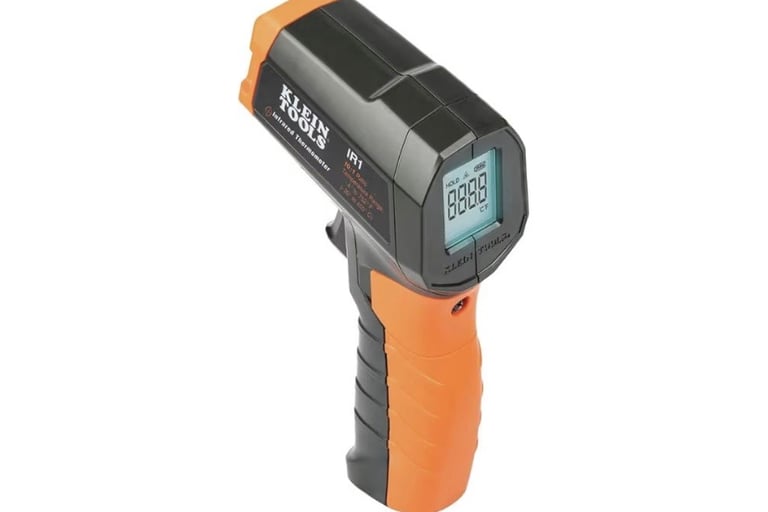

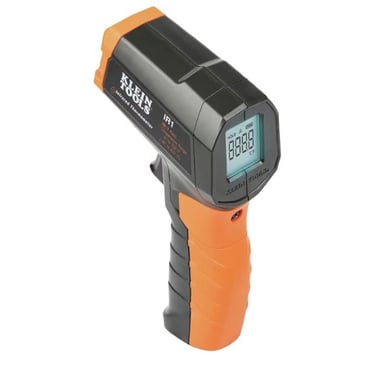

Klein Tools IR1 Infrared Thermometer

3. Bad Radiator Fan

If your engine runs hotter in traffic or while idling but cools down a little once you are moving, the radiator fan becomes a major suspect. The fan’s job is to pull air through the radiator when the vehicle is not getting enough natural airflow.

A bad radiator fan problem could be caused by:

• failed fan motor

• blown fuse

• bad relay

• bad temp sensor

• wiring issue

If the fan is not kicking on when the engine gets hot, your radiator will struggle to get rid of heat. This is especially noticeable on hot days or when sitting at a stoplight.

Using the Klein IR1 Infrared Thermometer here can also help you compare radiator temperatures before and after the fan should be running. That can give you another clue about whether the system is actually shedding heat.

4. Clogged Radiator

Sometimes the coolant level is fine and the thermostat is working, but the radiator itself is no longer doing its job. Internal clogging can reduce coolant flow, while external debris can block airflow through the fins.

Things that can clog a radiator include:

• rust and corrosion

• old contaminated coolant

• stop-leak products

• scale buildup

• dirt and debris on the outside fins

If certain parts of the radiator are much cooler than others, that can sometimes point to restricted flow. Again, this is where an infrared thermometer can be useful. A quick temp scan across the radiator can help you spot uneven cooling patterns.

If the system looks dirty or neglected, a flush may help, but if the radiator is badly restricted internally, replacement may be the real fix.

5. Failing Water Pump

The water pump keeps coolant moving through the engine, radiator, and heater core. If it starts failing, the system may not circulate enough coolant to control temperature properly.

Signs of a failing water pump can include:

• coolant leak near the pump

• whining or grinding noise

• overheating at different speeds

• weak heater performance

• wobble at the pulley

A water pump problem can sometimes be obvious, but not always. If you suspect a leak anywhere in the cooling system, this is where a coolant pressure tester kit becomes really useful.

The DAYUAN Universal Radiator Pressure Tester Kit can help you pressurize the cooling system and check for leaks at hoses, the radiator, fittings, the cap area, or the water pump. Instead of guessing where coolant is disappearing, a pressure test can make the source a lot easier to find.

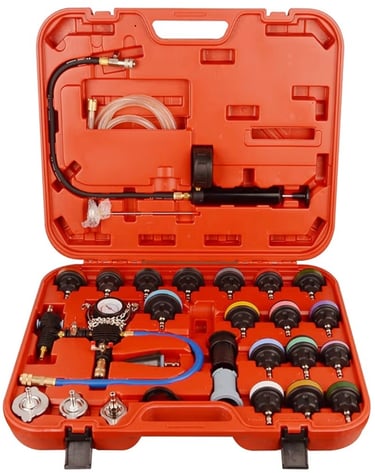

DAYUAN Radiator Pressure Tester Kit

Why Air Pockets Matter More Than People Think

A lot of people top off coolant and assume they are done, but trapped air can still cause overheating even when the system looks full. Air pockets can prevent proper circulation and create hot spots in the engine.

That is why a spill-proof funnel kit is such a good tool to have. The EPAuto Spill Proof Radiator Coolant Filling Funnel Kit helps raise the fill point and makes it easier to burp the system while the engine warms up. If your cooling system has recently been opened up for a thermostat, hose, radiator, or water pump repair, trapped air should definitely be on your list of suspects.

A Simple Way To Troubleshoot Before Replacing Parts

If I were checking an overheating issue step by step, this is the order I’d go in:

Step 1: Check coolant level

Make sure the engine is completely cool, then verify the radiator and reservoir are filled properly.

Step 2: Look for obvious leaks

Inspect hoses, clamps, radiator seams, water pump area, and around the thermostat housing.

Step 3: Burp the cooling system if needed

Use a spill-proof funnel kit to help remove trapped air.

Step 4: Compare temperatures

Use an infrared thermometer to check hose temps, thermostat housing temp, and radiator temp differences.

Step 5: Pressure test the system

If coolant keeps disappearing or you suspect a hidden leak, use a cooling system pressure tester.

That process gives you a much better shot at finding the real problem before replacing a thermostat, fan, radiator, or water pump for no reason.

Three Helpful Products For Diagnosing Overheating

1. EPAuto Spill Proof Radiator Coolant Filling Funnel Kit

Helpful for topping off coolant and bleeding trapped air from the cooling system.

2. Klein Tools IR1 Infrared Thermometer

Useful for checking temperatures around the radiator, hoses, and thermostat housing without touching hot parts.

3. DAYUAN Universal Radiator Pressure Tester Kit

Great for tracking down coolant leaks and pressure loss in the system.

Final Thoughts

If your engine is overheating, do not ignore it and do not keep driving it hoping it will fix itself. Low coolant, a stuck thermostat, a bad radiator fan, a clogged radiator, or a failing water pump can all send temperatures climbing fast.

Start with the basics. Check coolant level, inspect for leaks, verify temperature patterns, and make sure the system is free of trapped air. A few smart diagnostic tools can save you a lot of time and keep you from replacing parts blindly.

Helpful tools to check out:

• EPAuto Spill Proof Radiator Coolant Filling Funnel Kit

• Klein Tools IR1 Infrared Thermometer

• DAYUAN Universal Radiator Pressure Tester Kit

Using the right tools can make it a lot easier to figure out why your engine is running hot before the problem turns into a major repair.
