Circuit Breaker Types Explained:

Disclosure: This post may contain affiliate links. As an Amazon Associate we earn from qualifying purchases.

If you’ve ever opened an electrical panel and wondered why some breakers look different from others, you’re not alone. Not all circuit breakers do the same job. Some are designed for standard overload protection, while others are built to help protect against shocks or dangerous arc faults.

Understanding the different types of circuit breakers can make electrical systems a lot less confusing, especially if you’re troubleshooting outlets, planning upgrades, or just trying to understand what’s in your panel.

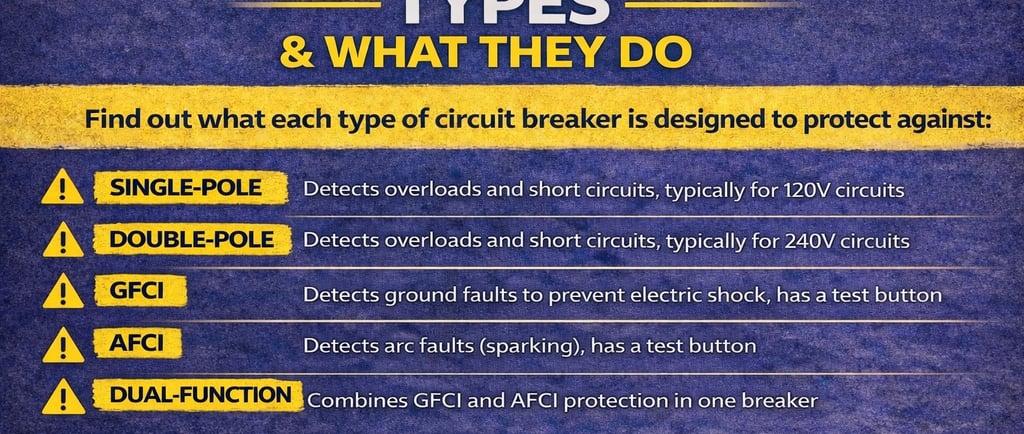

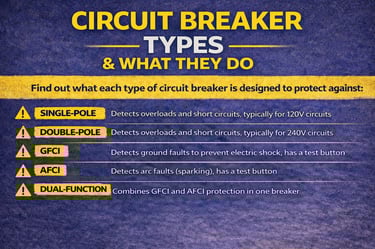

In this guide, I’ll break down the most common circuit breaker types, what they do, and where you’ll usually find them.

What a Circuit Breaker Actually Does

At the most basic level, a circuit breaker is a safety device. Its job is to shut off power when a circuit is overloaded or when a fault is detected.

Instead of wires overheating or electrical components getting damaged, the breaker trips and stops power flow to that circuit.

That’s why the correct breaker type matters so much. Different breakers protect against different electrical problems.

Single-Pole Breakers

A single-pole breaker is the most common breaker found in most residential electrical panels.

These breakers usually protect 120-volt circuits and are commonly used for things like:

• lights

• standard receptacles

• bedroom circuits

• living room circuits

• hallway circuits

A single-pole breaker is designed to protect against:

• overloads

• short circuits

If a circuit draws too much current or a direct short happens, the breaker trips.

Double-Pole Breakers

A double-pole breaker is used for 240-volt circuits and takes up two spaces in the electrical panel.

These are commonly used for larger electrical loads like:

• electric dryers

• ovens and ranges

• water heaters

• HVAC equipment

• larger air conditioners

Like single-pole breakers, double-pole breakers mainly protect against:

• overloads

• short circuits

The big difference is that they serve 240-volt equipment and disconnect both hot legs together.

GFCI Breakers

A GFCI breaker stands for Ground Fault Circuit Interrupter breaker.

This type of breaker is designed to help protect people from electric shock. It monitors the flow of current and trips if it senses current leaking somewhere it shouldn’t.

GFCI protection is commonly used in places where water is present, such as:

• bathrooms

• kitchens

• garages

• unfinished basements

• outdoor circuits

• laundry areas

A GFCI breaker protects against:

• ground faults

• shock hazards

These breakers usually have a test button on them so you can verify they’re working properly.

AFCI Breakers

An AFCI breaker stands for Arc Fault Circuit Interrupter breaker.

These breakers are designed to detect dangerous electrical arcing. Arcing can happen when wiring is damaged, loose, or deteriorated, and it can create heat that may lead to fire.

AFCI breakers are commonly used on circuits serving:

• bedrooms

• living rooms

• dining rooms

• hallways

• other general living spaces

An AFCI breaker protects against:

• arc faults

• fire risks caused by damaged or loose wiring

Like GFCI breakers, AFCI breakers also typically include a test button.

Dual-Function Breakers

A dual-function breaker combines both GFCI and AFCI protection in one breaker.

This means it can help protect against:

• ground faults

• arc faults

• shock hazards

• certain wiring-related fire risks

These are useful when code requires both kinds of protection on the same circuit. Instead of using separate protective methods, one breaker handles both.

Dual-function breakers are becoming more common in newer installations and remodels.

Why These Differences Matter

Knowing the difference between breaker types can help a lot when you’re troubleshooting electrical problems.

For example:

• If a standard breaker trips, you may be dealing with an overload or short circuit.

• If a GFCI breaker trips, there may be moisture or current leakage somewhere.

• If an AFCI breaker trips, it may point to loose wiring, damaged cords, or electrical arcing.

• If a dual-function breaker trips, the issue could involve either a ground fault or an arc fault.

That doesn’t mean the breaker itself is always bad. A breaker tripping is often a sign that it’s doing its job and alerting you to a problem on the circuit.

Common Signs You May Need to Investigate a Circuit

If you notice any of these issues, it may be time to take a closer look at the breaker or circuit:

• breakers tripping repeatedly

• outlets suddenly losing power

• flickering lights

• burning smells

• crackling sounds from outlets or switches

• appliances shutting off unexpectedly

Electrical troubleshooting always needs to be done carefully. If you’re not comfortable working around live electrical equipment, it’s best to call a licensed electrician.

A Good Meter Makes Troubleshooting Much Easier

When you’re trying to diagnose electrical problems, having a reliable clamp meter or multimeter can make things much easier.

A good meter can help you check things like:

• AC voltage

• continuity

• resistance

• whether a circuit is energized

• whether power is reaching an outlet or breaker-fed device

That kind of information is incredibly helpful when you’re trying to figure out whether the issue is the breaker, the wiring, or the device on the circuit.

Final Thoughts

Circuit breakers may all look similar at first, but they don’t all do the same thing. Single-pole and double-pole breakers mainly protect against overloads and short circuits, while GFCI, AFCI, and dual-function breakers add protection against shocks and arc faults.

The more you understand what each type does, the easier it becomes to make sense of your electrical panel and troubleshoot problems safely.
